Optical Design & Advanced Packaging
Unique optical design for VCSEL
Leveraging proprietary optical design tools, the team performs precise simulation and optimization, combined with deep expertise in VCSEL device physics and optical characteristics, enabling a closed-loop innovation process from chip design to optical modules and system-level integration.
Highlights
Greatly benefit VCSEL properties

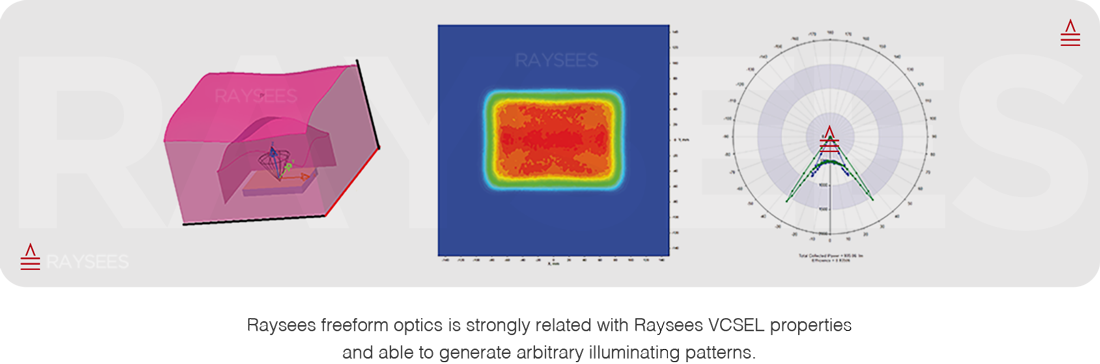

Raysees VCSEL design is optimized using systematic combination of theoretical, numerical, and experimental methods. Optical components based on this closed technical loop of VCSEL and optics can to a great extent benefit VCSEL features and provide solutions with optimized power consumption and optimal device size.
More flexible solutions to customers

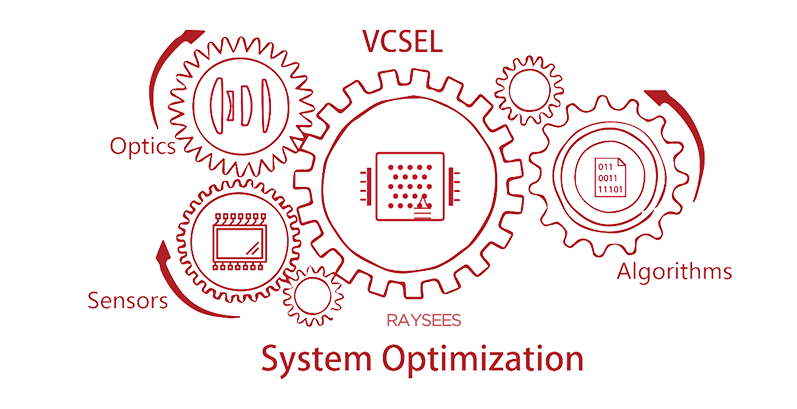

To expand our ability to server customers in the field of optical sensing, Raysees integrates our VCSEL optics, receiving sensors and algorithms into a whole system, aiming for the optimization of sensing systems with reduced supply chain cost and power consumption. From this unique integration, Raysees formed a closed loop with the idea to provide optimal solution that better meets customer needs with lower costs and higher throughputs. Raysees can innovatively provide custom solutions for intelligent sensing, medical, LiDAR, robotic visions, etc through careful planning of prototypes and methodical testing.
Advanced Packaging & Automated Manufacturing
Raysees continuously optimizes and evolves advanced packaging processes, integrated with automated manufacturing capabilities, to achieve high-efficiency, high-quality optical product production at scale. While ensuring performance and reliability, it reduces manufacturing complexity and cost, providing a solid foundation for large-scale, high-volume delivery.
