SRAY VCSEL dot projector
SRAY VCSEL dot projector
Benefitting from laser coherent property, Raysees SRAY VCSEL projectors can generate multiple diffractive patterns by integrating Raysees in-house VCSEL chips with delicate diffractive optical elements (DOE). Raysees SRAY VCSEL products are highly customizable products which can be designed according to customers specific demand of FOV and diffractive patterns. Featuring compact size and standard connectors, our dot projectors can be widely used in 3D face recognition, machine vision, barcode scanner, laser printing and so on.
Raysees SRAY sources are mass produced in Raysees own manufacturing lines in Hefei and Shenzhen, under the ISO9001 quality management control.
Product Features
-
Products delivered to
global leading customers -
100%
In-house VCSEL -
Offer custom solutions
rapid response -
In-house packaging
with guaranteed delivery -
Certifed workfow
and quality control -
Complete
patent portfolio
-
Applications
-
Auxiliary positioning
-
Structured light
-
3D Face recognition
-
Machine vision
-
Laser scanning

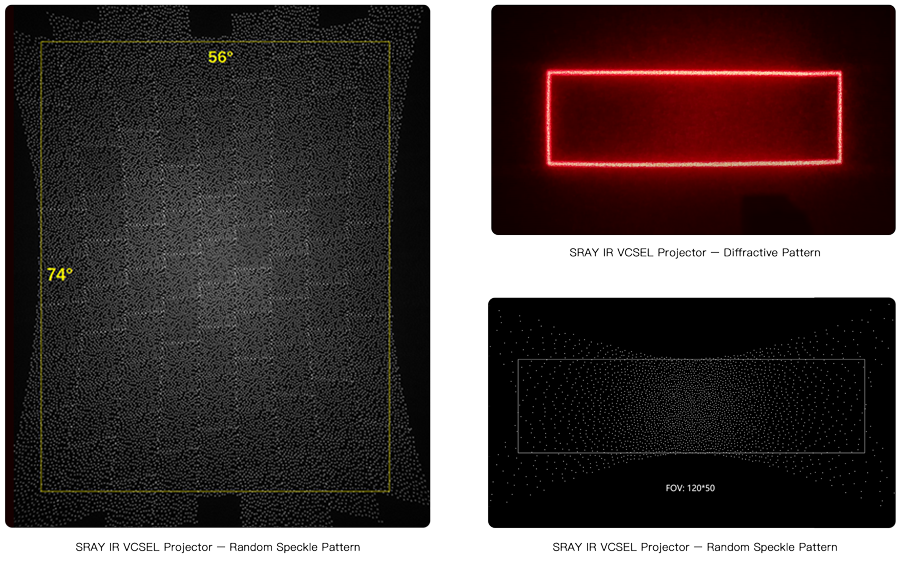

VCSEL features unique diffractive properties
Make it the perfect laser source for diffractive optics.

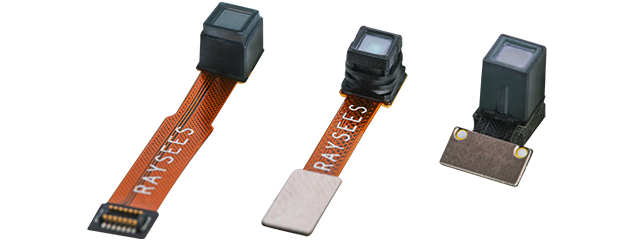

Product Series
Product Model  | Dimension | λ(nm) | FOV（H°/V°） | Pattern | Recommended Driving | Operating Temperature |
|---|---|---|---|---|---|---|
SR94-DH157A | 22.18*4.2*4.31 | 940nm | 56/74 | 26000 random speckles | 1.5A@3ms/10% | -10~+50℃ |
SR94-DM657B | 24.35*4.8*5.31 | 940nm | 56/74 | 15000 random speckles | 1.0A@3ms/10% | -20~+60℃ |
SR66-DS262D | 9.35*4.2*5.1 | 665nm | 55.4/17.9 | Solid Line Rectangle | If≤5mA@≤40℃ | -10~+40℃ |
