XRAY VCSEL line source
XRAY Series

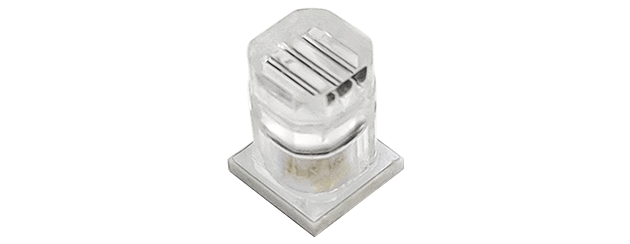

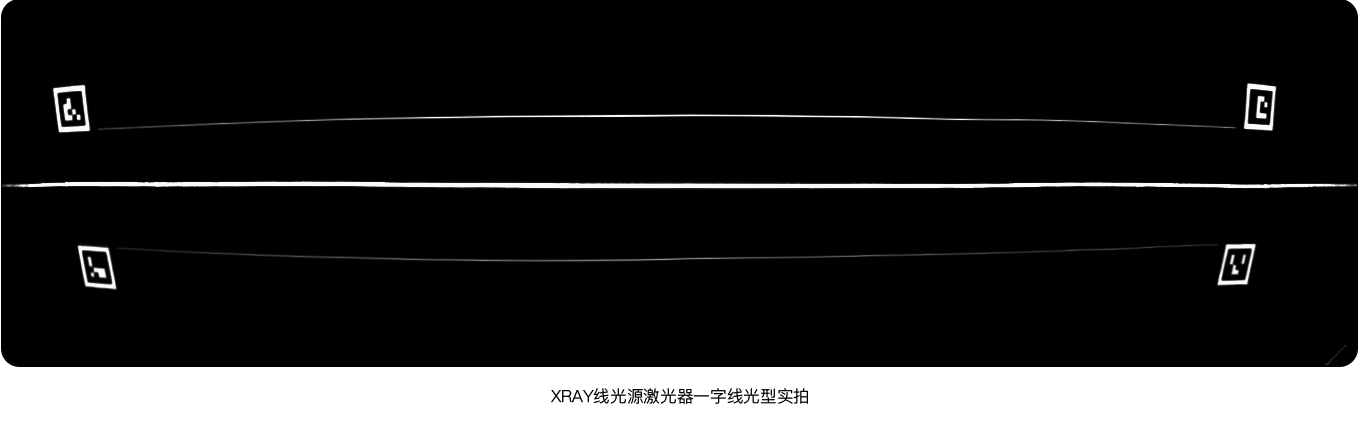

Raysees Xray products are a series of laser-line modules which combine Raysees in-house VCSEL chip with Raysees unique optical design. Compared with conventional laser-line products using edge-emitting laser (EEL), Raysees VCSEL laser-line module features more uniform laser-line width, larger field-of-view (FOV, 140°), lower power consumption. Either chip-on-board (COB) packaging or barrel packaging can be provided to fit customer’s structural design.
Raysees XRAY sources are mass produced in Raysees own manufacturing lines in Hefei and Shenzhen, under the ISO9001 quality management control.
Product Features
-
Products delivered to
global leading customers -
100%
In-house VCSEL -
Offer custom solutions
rapid response -
In-house packaging
with guaranteed delivery -
Certified workflow
and quality control -
Complete
patent portfolio
Applications
-
Visual inspection
-
Laser obstacle avoidance
-
3D scanning
-
Linear structured light
Raysees patented VCSEL and optics technology
Deliver the best performance line laser source
Product Series
Product Model  | Dimension (Customizable) | λ (nm) | FOV One-Line | Line Width@60mA | Rated Optical Power @10mA&25℃ | Operating Temperature |
|---|---|---|---|---|---|---|
LS80-LL6A2A | 5.5*5.5*7.2 | 808nm | 120° | ≤3mm@30cm | 65mW | -10~+60℃ |
LS85-LL6A2A | 5.5*5.5*7.2 | 850nm | 120° | ≤3mm@30cm | 68mW | -10~+60℃ |
LS94-LL5A2A | 5.5*5.5*7.2 | 940nm | 120° | ≤3mm@30cm | 55mW | -10~+60℃ |
LS80-LM1A2A | 5.5*5.5*7.2 | 808nm | 120° | ≤5mm@30cm | 145mW | -10~+50℃ |
LS85-LM1A2A | 5.5*5.5*7.2 | 850nm | 120° | ≤5mm@30cm | 155mW | -10~+50℃ |
LC80-LL6A2C | Φ8.0*8.2mm | 808nm | 120° | ≤3mm@30cm | 65mW | -10~+60℃ |
LC85-LL6A2C | Φ8.0*8.2mm | 850nm | 120° | ≤3mm@30cm | 68mW | -10~+60℃ |
